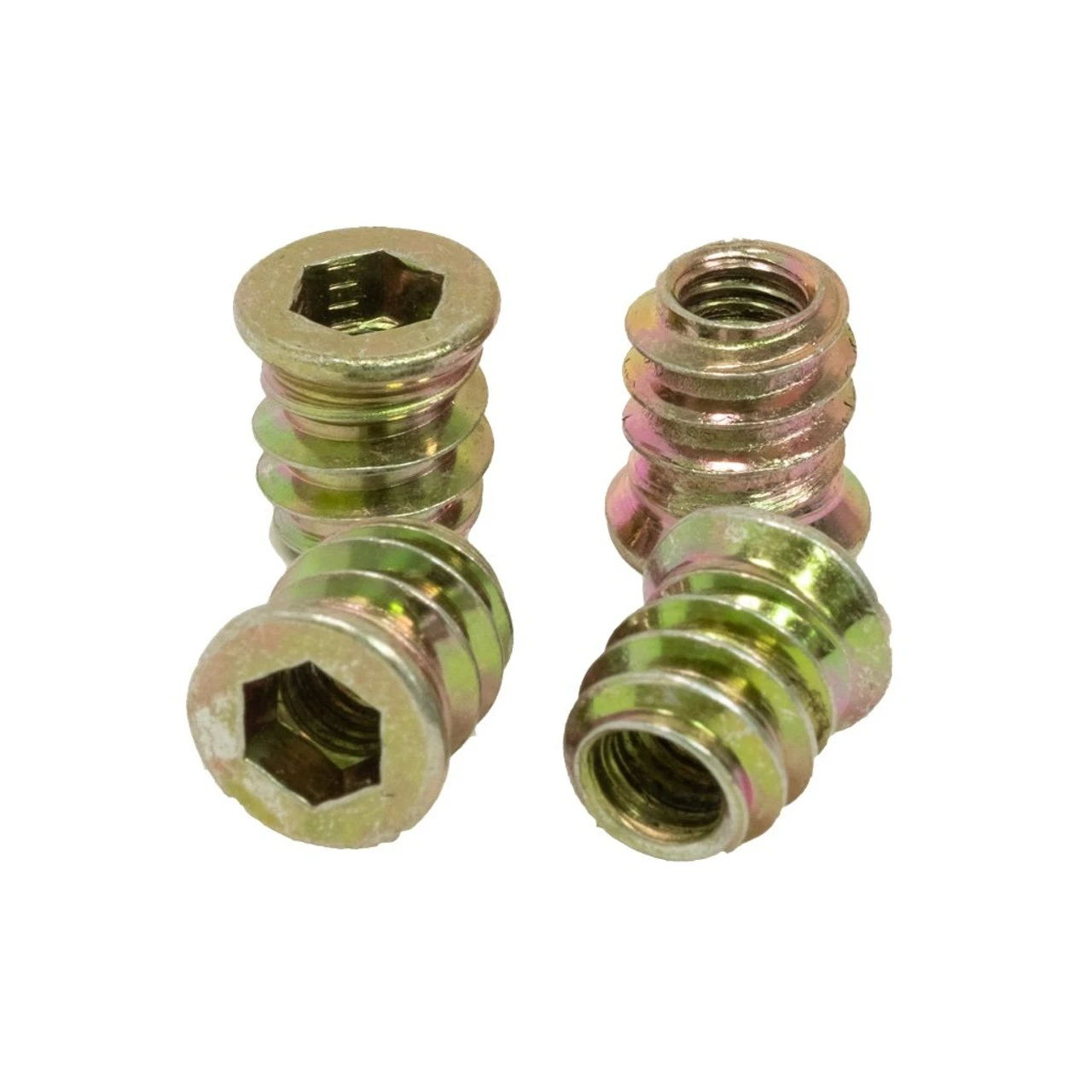

Carbide 3D Threaded Inserts (Qty 100)

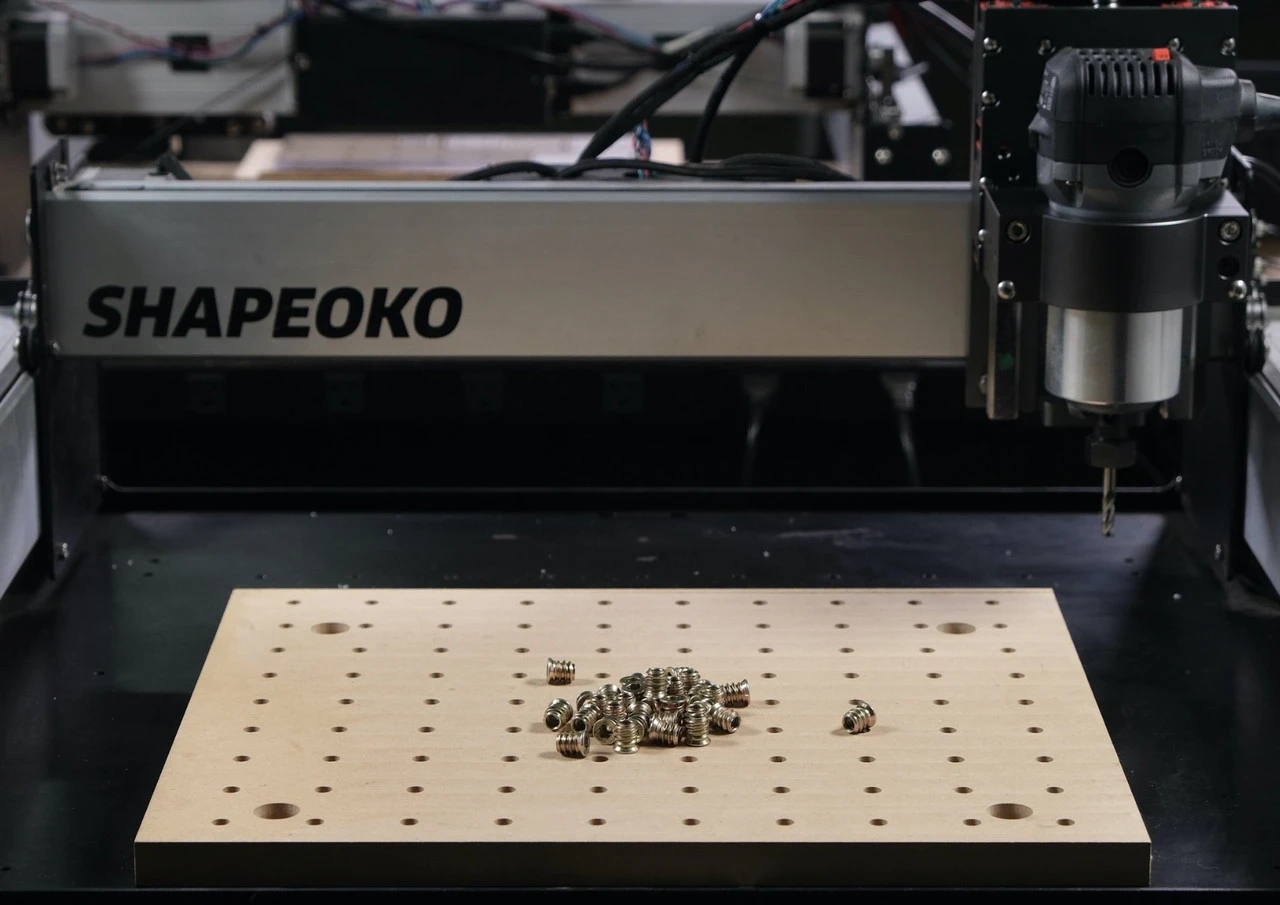

These inserts are great for easy and flexible work holding solutions. You could strategically place a few to hold down material in a jig or fixture, or install in a grid pattern to turn your wasteboard into a threaded table by installing these threaded inserts.

Installation is easy, simply create a 9mm pilot hole, then thread the insert into the hole.

They are available in two styles:

• Metric: M6x1mm thread
• Inch: 1/4-20 thread

Both the inch and metric come in packs of 100 inserts and include a 6mm hex key and 6mm hex driver for installation. The hex driver can be used with a cordless drill for quick installation.

Specs:

• 6mm Hex (on both Imperial and Metric versions)
• Length: 13mm (~1/2″)
• Maximum Hole Size: 9mm (0.354″, Letter T Drill)

Dimensions: 5″ x 5″ x 3″

Wasteboard Templates: If you are looking for a starting point on creating a wasteboard for your Shapeoko, take a look at the the Cutrocket links below for Carbide Create templates.
