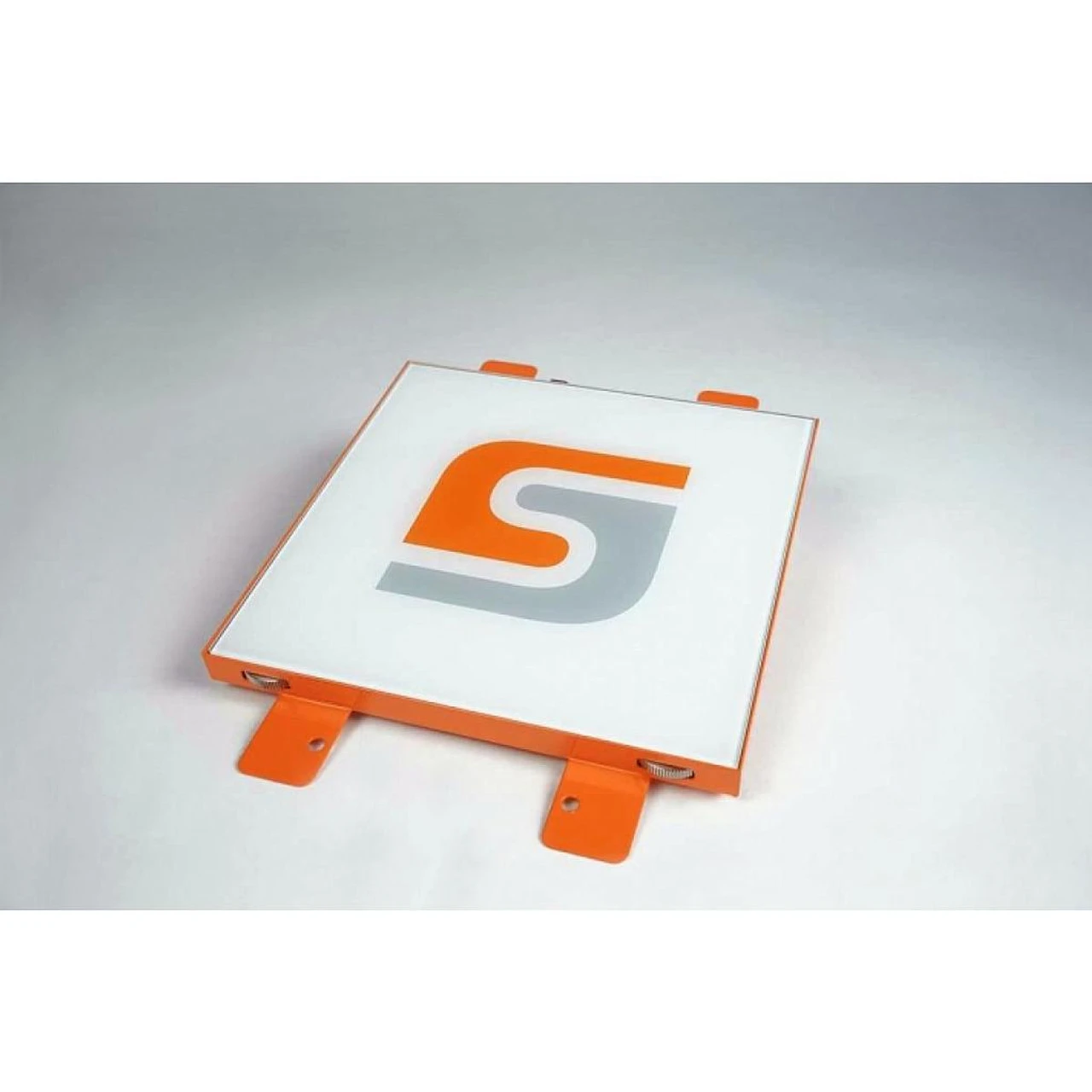

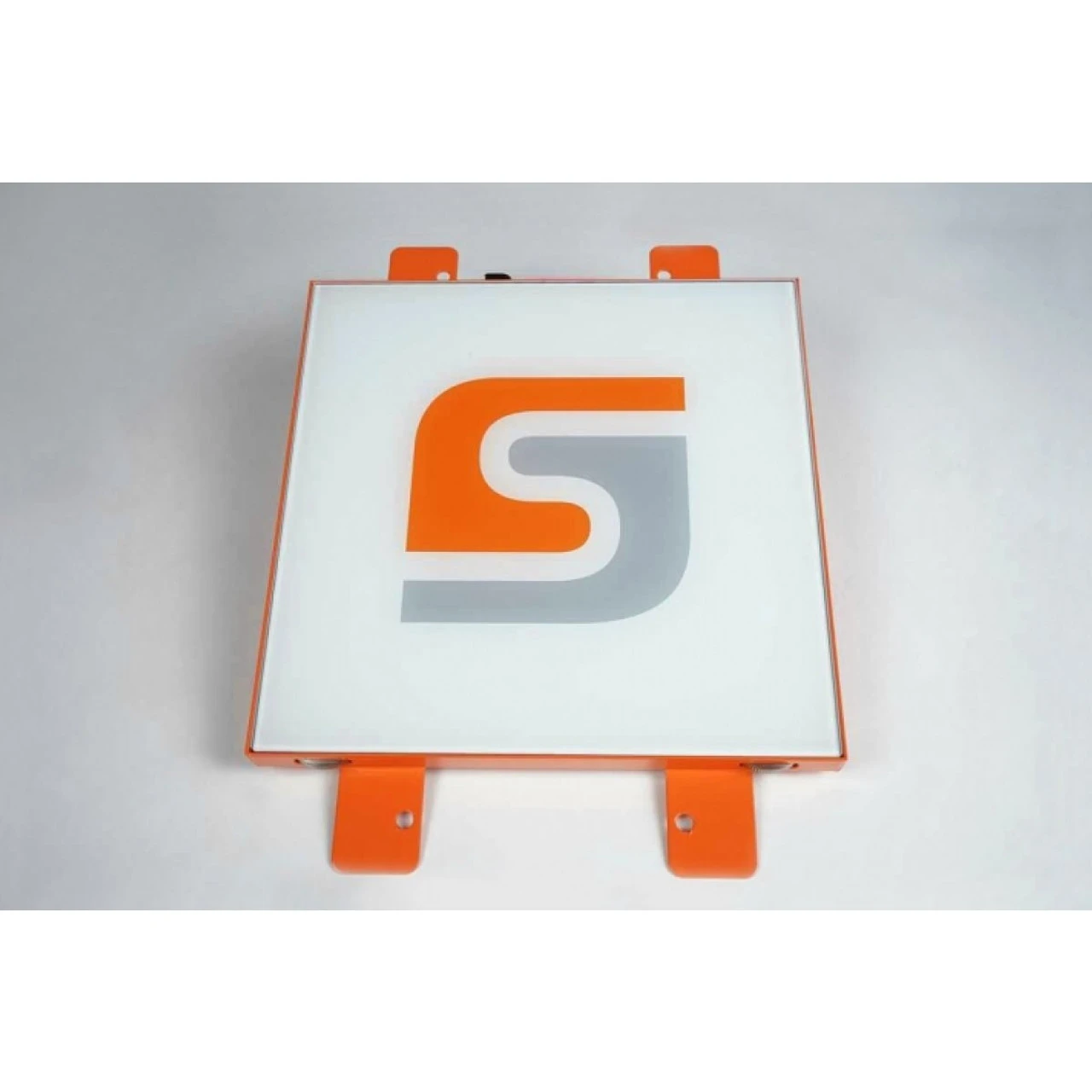

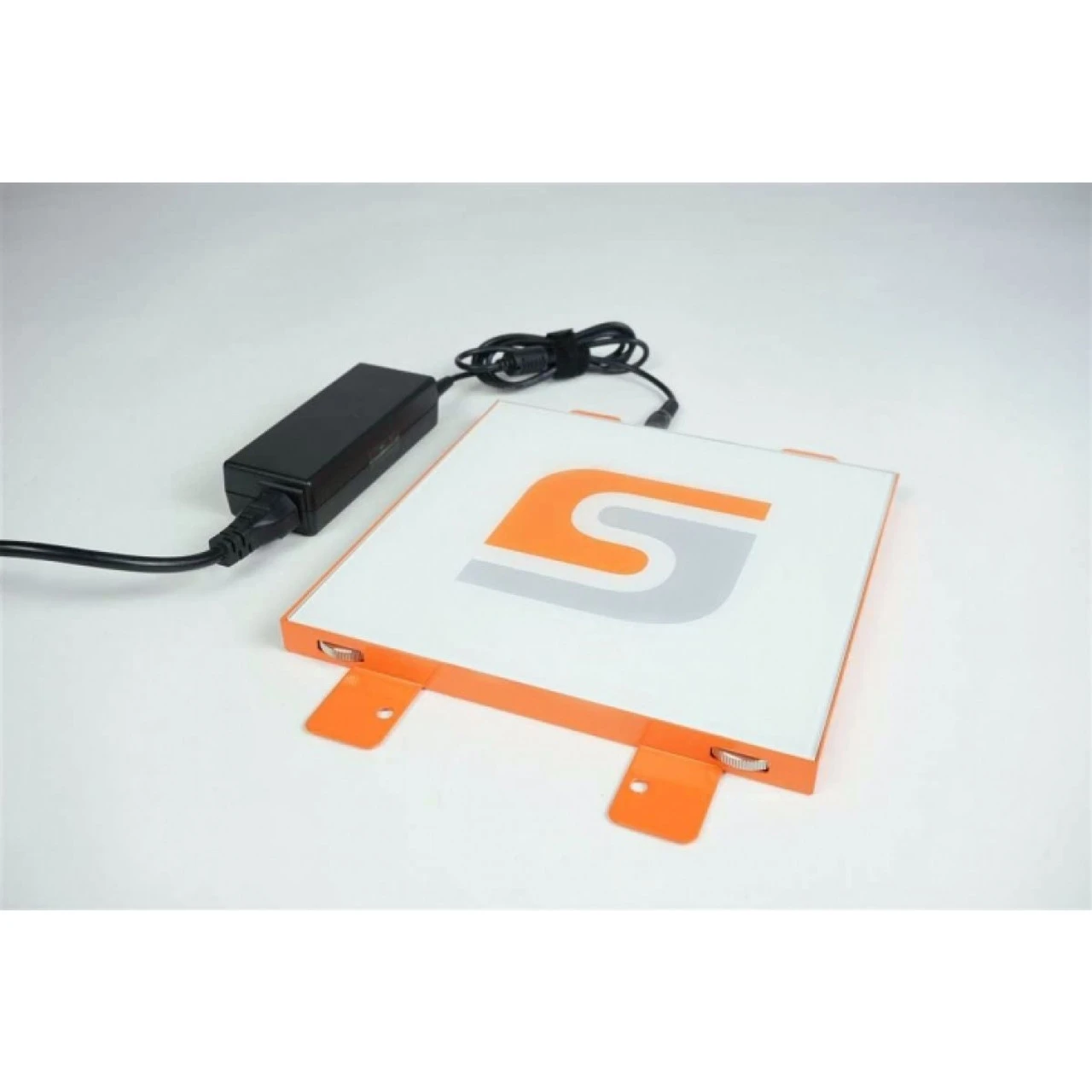

STEPCRAFT Heated Bed For PH40 3D Print Head

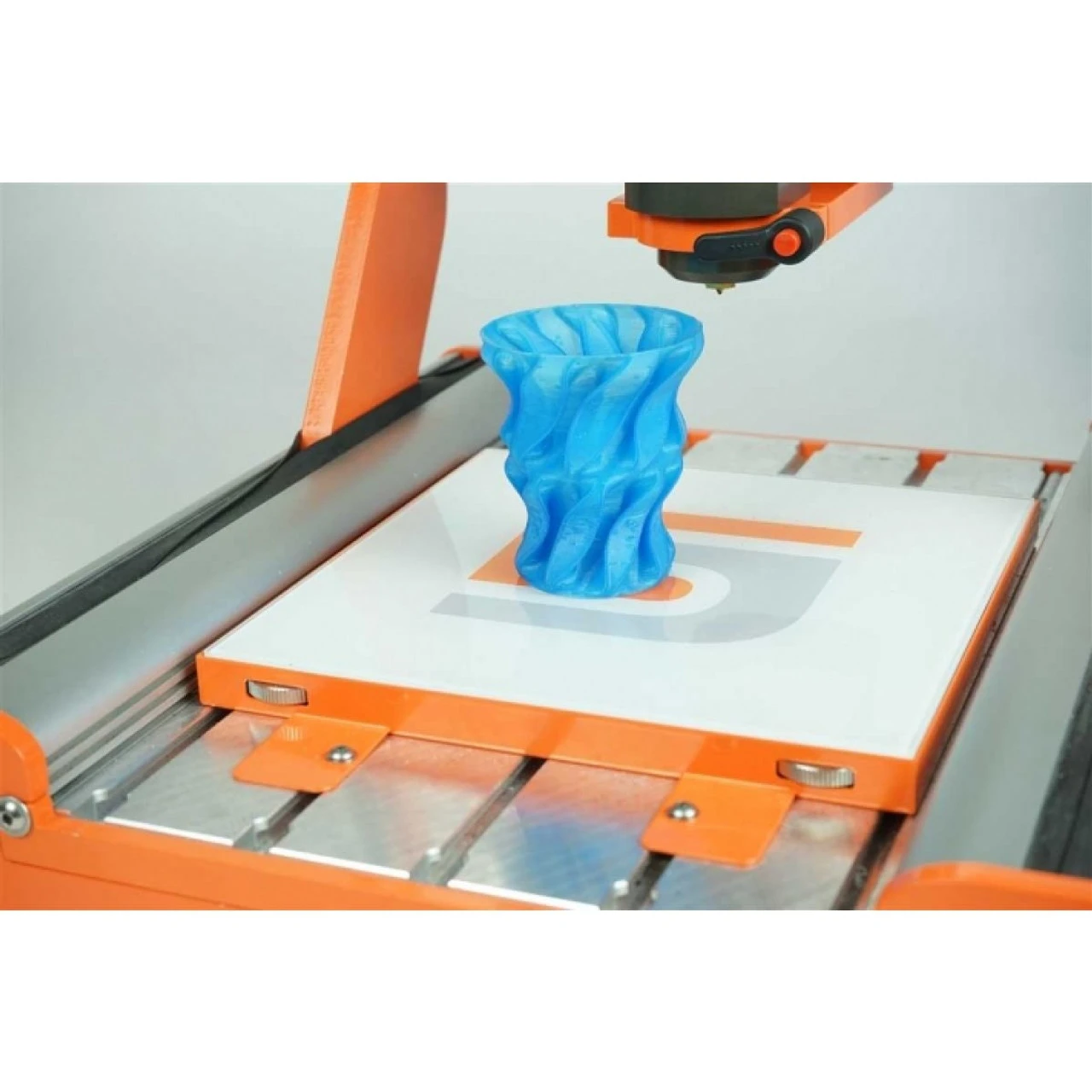

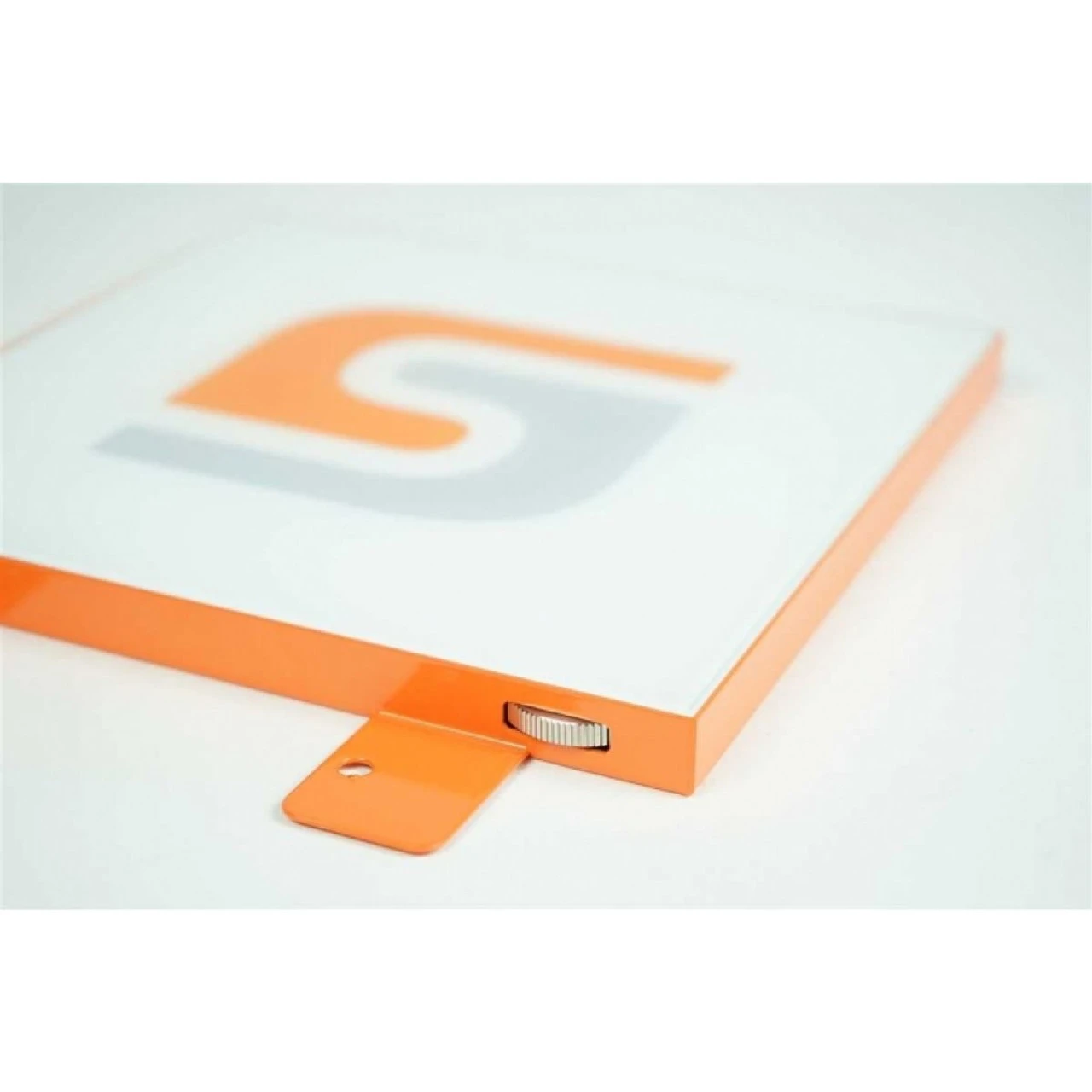

The Heating Bed makes 3D print much easier and more accurate. It reduces the temperature between the filament and the bed which provides a better adhesion. Additionally, the heating bed is height-adjustable so that you will always have a plane surface.

Technical Specifications:

• Dimensions: 213 mm x 213 mm
• Printing area: 210 x 210 mm
• Weight: 4 lbs

HEATED BED TEMPERATURE:

If operating a 19v VERSION 1 3D Printer:

• One setting approx. 70°C – 80°C

If operating a PH-40 VERSION 2 3D Printer:

• Level 1: approx. 45°C
• Level 2: approx. 70°C
• Level 3: approx. 90°C
