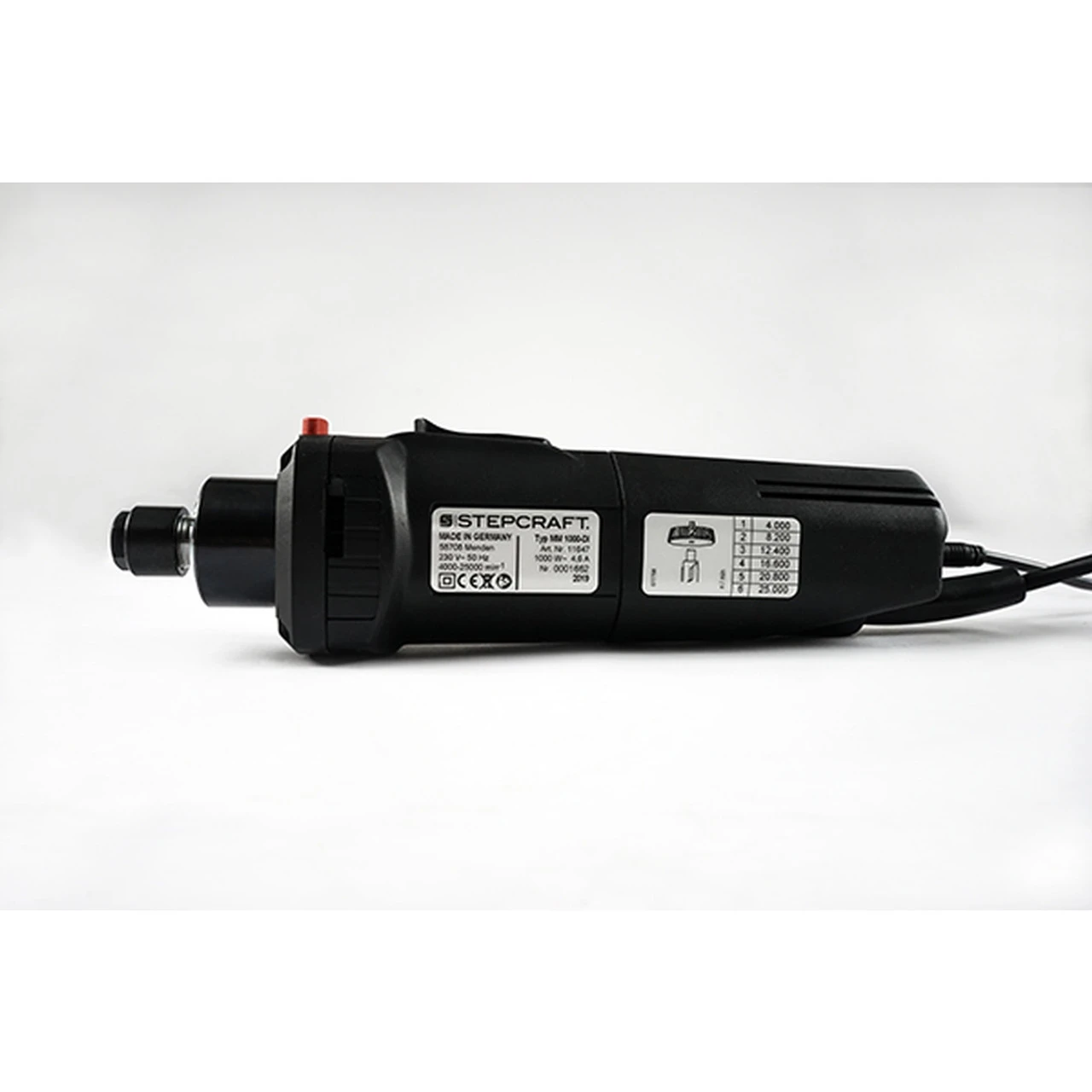

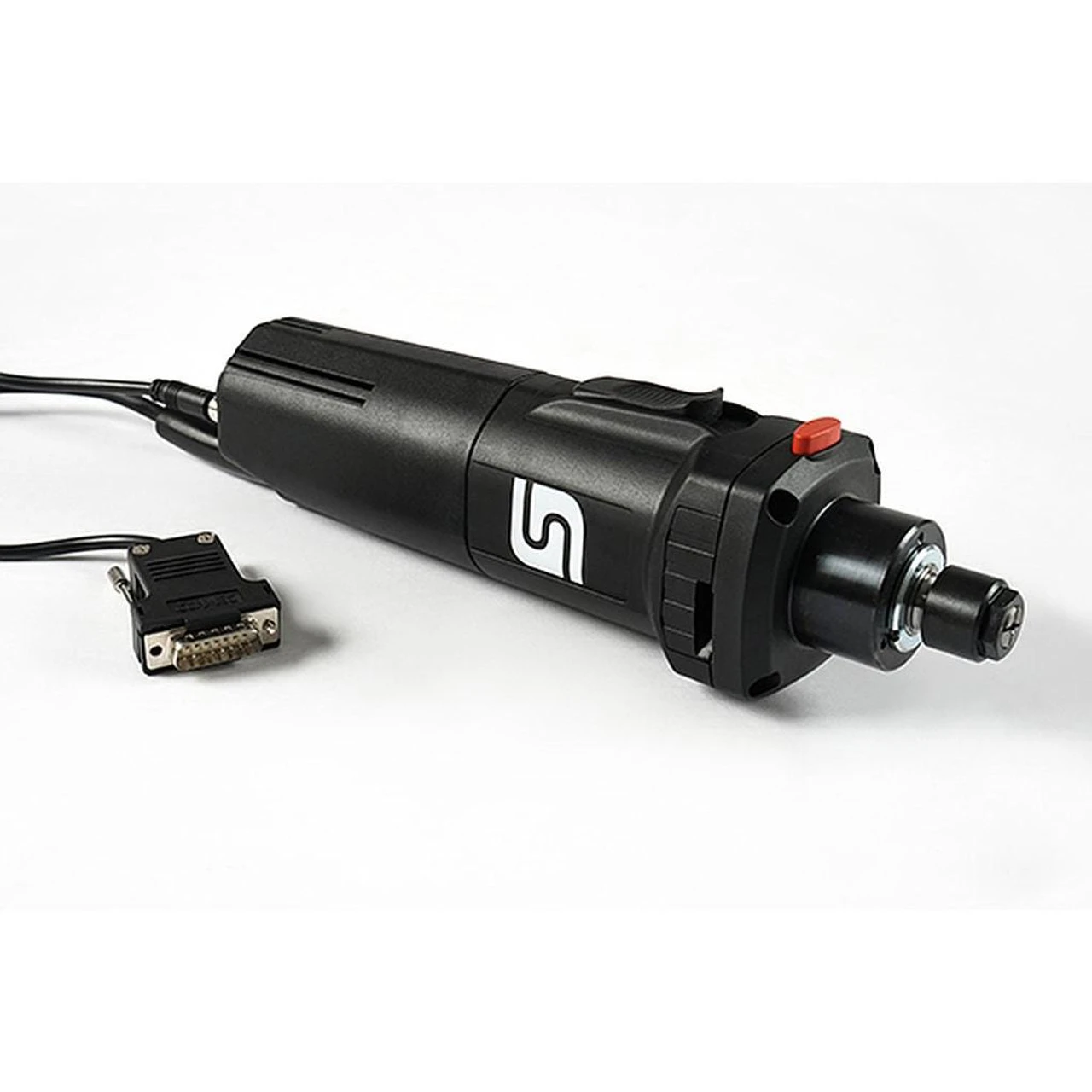

Stepcraft MM-1000 Di Digital Milling Spindle For D-Series And M-Series

The MM-1000 DI is the newest line of spindles that we offer for our D-Series CNC Systems.  The spindle is made in Germany under strict quality control and is designed to perform reliably for long periods of time. Unlike a typical router, such as the Dewalt DW611, the MM-1000 DI is a true CNC milling spindle with the use of precision bearings that are designed for very long runtime with maximum concentricity. A labyrinth seal is used to protect the spindle and bearings against dust and debris.  Unlike our popular MM-1000 Milling Spindle, the new “DI” version includes a digital interface so you can control the RPM of the spindle via UCCNC and your g-code programs. It also has a manual dial on it to override the digital settings should you need to do so.  It has a sound level of only 71 dB which means lower noise in your shop.

TECHNICAL SPECIFICATIONS

• Input Voltage (AC): 110V

• Rotary Speed: 4,000-25,000 rpm

• Output Power: 1000 watts (1.4 hp)

• Quiet design: 71 dB

• Digital electronics with constant speed under load, soft start-up, idle speed reduction and overload protection

• Concentricity (shaft): <0.01 mm

• Concentricity (end mill): <0.05 mm

• Labyrinth seal to protect spindle bearing against foreign particles

• External gantry interface

• For wood, metal, plastics, foam, polystyrene, stone

• Weight: 3.6 lbs.

SCOPE OF DELIVERY

• Milling Motor MM-1000 DI

• 1/8″ Collet

• Spanner wrench

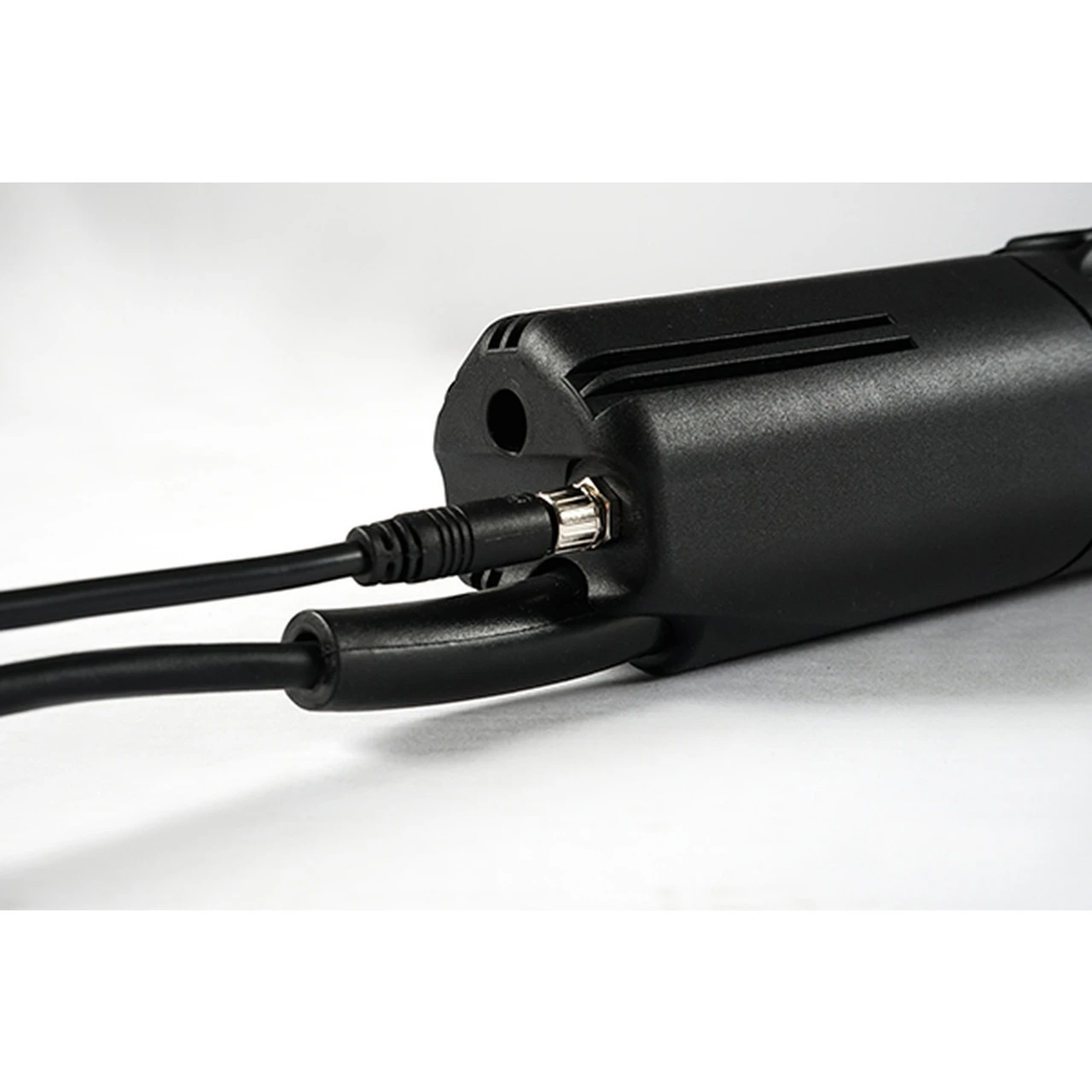

• Sensor Cable
